OEM/ODM Service

    Angstroms Corp. is not merely committed to providing the finest components. We understand that service is equally important, which is why we provide our customers the OEM/ODM service support, in conjunction with other customized solutions, to meet their specific requirements.

We will be your alliance partner to offer cost effective manufacturing, on-time deliveries, and the best quality management in the customized project. Our customers will earn the competitive advantages with the effective cost reduction and time-to-market.

    Angstroms Corp. and our strategic alliance partners has run abundant experience in applying Complex Injection Molding Designs, Prototypes & Production Tooling across plastic, hardware parts and electronic components industries. Once customer provides us with concept information and/or detailed specifications, we will offer them the estimated expense for moulds, estimated cost per unit and scheduling before the project begins.

    The software employed on mold design and moldflow analysis included UG, Pro-E, IGS, CAD/CAM/CAE and Solid-works. First article and golden sample shall be approved by customer prior to mass production commenced. Angstroms will work with customers until all original design requirements are met, and the product performs exactly to customers' expectations.

    We sincerely hope to step ahead with any customers for the OEM/ODM project cooperation.

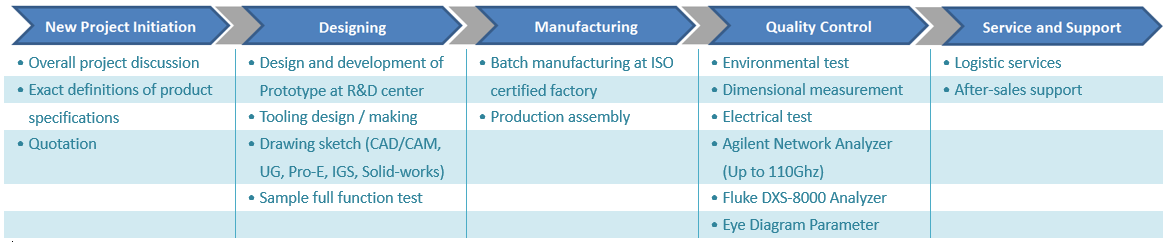

OEM/ODM Service Flow Chart

Flow Chart.png

Our allied partners of cable assembly and wire harness are UL, ISO, TS16949 certified and RoHS, Metal Conflict-Free compliant, and work to IPC 620 standards. We are specialize in converting the parts from original source into the equivalent low cost parts for these cable assembly and wire harnesss. Whether you need a connector overmolded to ensure hermetic sealing, silicone overmolding for a medical device or a complex wire harness, we have a full complement of process capabilities to build your own custom cable assembly. Angstroms’s team draw on our knowledge of materials, tooling and in-process management to ensure our customers receive a high quality cable assembly & wire harness at a competitive cost.

Main production equipment for cable assy. & wire harness

Molding machines

Crimping machines

Automatic striping machines

Full automatic terminal crimping machines

Full automatic wire cutting, stripping & terminal crimping machines

Main measurement equipment for cable assy. & wire harness

Electrical tester/Ground continuity tester

Wire bending tester

Tensile strength tester

FLUKE DSX-8000 cable analyzer

XRF-Rohs tester Rohs

In order to full fill the higher frequency requirement and highly precise tolerance condition in RF series connectors and coaxial cable assembly, the major facilities quipped with STAR CNC automatic lathe and Agilent Network Analyzer up to 110GHz. The most important of all is the well knowledge engineering team and plentiful of practical experience in the made-to-order project to secure and testify all higher frequency functions to comply with customer’s specification. Precision process capability can be controlled that range from Ø0.25mm to Ø42mm, and process tolerance less than 0.003mm.

Main production equipment for RF connector & cable assembly

STAR CNC Automatic Lathe

Automatic Stamping Machine (Turntable Type)

Stamping Machine

Bench Lathe

Single Spindle Automatic Lathe

Wire Cutter Stripper

High Frequency Welding Machine

Main measurement equipment for RF connector & cable assembly

Optical Projector

2.5 Dimensional Image Measuring Machine

Agilent Network Analyzer (30Mhz-3Ghz / 300kHz-20GHz / 10Mhz-67Ghz / 110Ghz) – 50Ω/75Ω

Dielectric Withstanding Tester

High & Low Temperature Test Device

At the design stage for the custom-made connectors, the software appied to connector design and mold design have UG, Pro-E, Solid-work, and CAD/CAM/CAE. Those molds and tooling product the stamping terminal, housing and the accessory of connector parts. The process are involved in inserted molded, plastic injection, metal sheet stamping and precision machined as well. All the connectors would be tested in accordance with the specification requested by customer in prototype and mass production.

Main production equipment for connectors

Injection Molding Machine

High Speed Stamping Machine

Crimping machines

Main measurement equipment for connectors

CCD image sensor

Electrical Tester

High-Low Temperature Test Chamber

Salt Spray Tester

Durability Insertion and Withdrawal Tester

Auto lathe machined parts is another core product we have run for more than a decade. The tolerance of precision hardware parts can be controlled in 0.002mm. the material being used have copper, aluminum, steel, iron and Teflon as well. The surface treatment is acceptable upon request.

Main production equipment for hardware parts

STAR CNC Automatic Lathe SB-20JA

TURNING CNC lathe CKS36Y

Single Spindle Automatic Lathe

Vertical Milling Machine

Precision Grinding Machine

High Speed Stamping Machine

Injection Molding Machine

Die Casting Machine

CNC EDM

Main measurement equipment for hardware parts

2.5 Dimensional Image Measuring Machine
